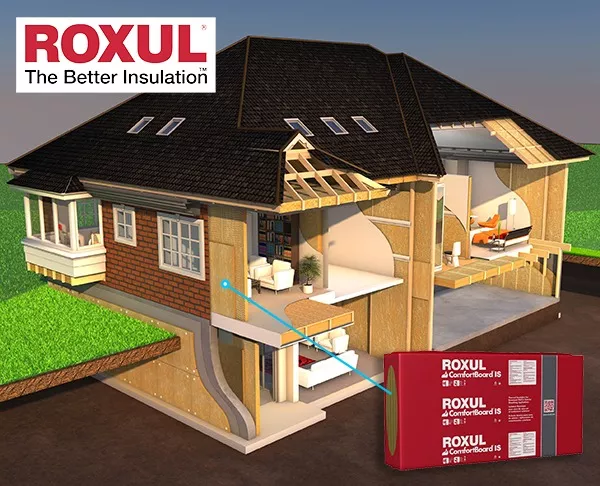

ROXUL COMFORTBOARD ™ 80 is a rigid mineral wool insulation sheathing board that is designed to be fastened to exterior wall studs to improve thermal performance to the building envelope. Advanced technologies make ROXUL COMFORTBOARD a non-combustible, water repellent, fire resistant and sound absorbent insulation product suited to modern building techniques.

City of Vancouver Building Code has recently changed requiring an actual R-22 value on all exterior walls (see detail). ROXUL ComfortBatt Insulation (or equivalent) alone does not meet that value due to thermal bridging caused by studs and other framing materials so the solution is ROXUL ComfortBoard ™ Exterior Sheathing Insulation. Click here for further info regarding City of Vancouver Building Code Requirements.

ROXUL Comfortboard 80

APPLICATION examples

extwall_assembly1_can

extwall_assembly2_can

extwall_assembly3_can

This product is specifically engineered as exterior non-structural insulation sheathing for high-performance residential wall systems. To view all ROXUL COMFORTBOARD ™ 80 applications, click here.

PRODUCT FEATURES

  • Can be easily cut with a bread-knife
  • Non-combustible with a melting point of approximately 1177°C (2150°F)
  • Excellent sound absorbency
  • Vapor Permeable
  • Does not rot or promote growth of fungi or mildew
  • Low moisture absorption
  • Chemically inert; non-corrosive
  • Water repellent
  • CFC and HCFC free, product and process
  • Made from natural & recycled materials
  • ROXUL can contribute to earning LEED® points

Get Quote

MORE ROXUL PRODUCTS

installation video
PRODUCT SPECIFICATIONS (CANADA)
Product Dimensions
R-5 at 1.25″ thick 24″ x 48″ [610 mm (width) x 1219 mm (length)]
and 36″ x 48″ [914 mm (width) x 1219 mm (length)]
R-6 at 1.5″ thick 24″ x 48″ [610 mm (width) x 1219 mm (length)]
and 36″ x 48″ [914 mm (width) x 1219 mm (length)]
R-8 at 2″ thick 24″ x 48″ [610 mm (width) x 1219 mm (length)]
and 36″ x 48″ [914 mm (width) x 1219 mm (length)]
R12 at 3″ thick 24″ x 48″ [610 mm (width) x 1219 mm (length)]
and 36″ x 48″ [914 mm (width) x 1219 mm (length)]
